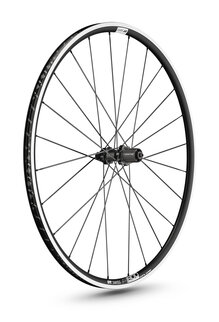

P 1800 SPLINE®
Tackle the heights of joy!
- MSRP per set US$ from $ 592
- Weight per set from 1590 g
- Brake interface Disc Brake, Rim Brake
- from € 429
- from CHF 429
Product details
Experience joy at new heights with this road cycling wheel. From conquering local hills to exploring alpine passes, it is developed for all altitudes. With our reliable Ratchet LN technology, you will enjoy seamless power transfer on even the steepest climbs. Hand-built for even spoke tension, you can rely on the wheel on the longest descents. Enhance your riding experience with style and comfort.
- Hub type 370 with Ratchet LN 18
- Rim Aluminum, Hooked / Crotchet tubeless TC
- Rim height 23 mm
- Spokes DT aero comp® wide straightp, DT new aero® II straightpull
Model finder
Just a few clicks to find your model. Please use the filter below.

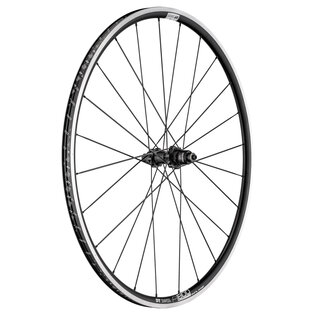

P 1800 SPLINE 23 5/130 mm Shimano
W0P1800HRQMSA21430- Net weight 896 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Approved for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Inner Width 18 mm
- Outer width 23 mm
- Cross-section
- Hub type 370
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Brake Interface Non disc
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT new aero® II Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
RWS ECO Synth.
Tubeless tape 21 mm
TL valve alu black 18-25 mm

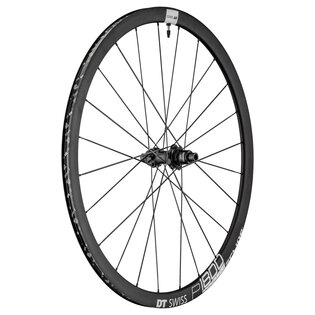

P 1800 SPLINE db 23 12/142 mm Shimano
W0P1800NIDMSA21345- Net weight 913 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Approved for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Inner Width 20 mm
- Outer width 24 mm
- Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® II Straightpull
- Spokes right DT new aero® II Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 18-25 mm

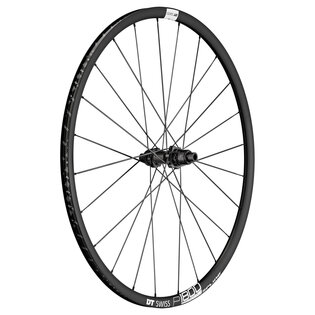

P 1800 SPLINE db 23 12/142 mm Sram XDR
W0P1800NID1SA21346- Net weight 890 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Approved for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Inner Width 20 mm
- Outer width 24 mm
- Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet LN 18
- Spokes left DT new aero® II Straightpull
- Spokes right DT new aero® II Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 18-25 mm

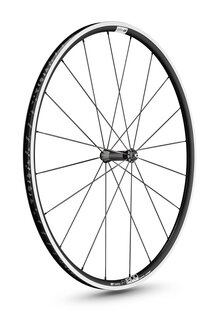

P 1800 SPLINE 23 5/100 mm
W0P1800AAQXSA21429- Net weight 694 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Approved for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Inner Width 18 mm
- Outer width 23 mm
- Cross-section
- Hub type 370
- Axle system 5 mm quick release
- Built-in dimension 100 mm
- Brake Interface Non disc
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Radial (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
RWS ECO Synth.
Tubeless tape 21 mm
TL valve alu black 18-25 mm

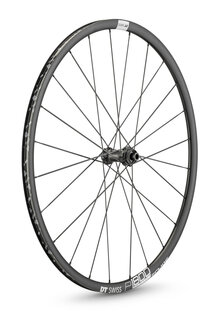

P 1800 SPLINE db 23 12/100 mm
W0P1800AIDXSA21344- Net weight 783 g
- recommended System weight max. 120 kg
- ASTM classification 1
- Approved for e-bikes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 23 mm
- Inner Width 20 mm
- Outer width 24 mm
- Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT new aero® II Straightpull
- Spokes right DT new aero® II Straightpull
- Spoke pattern Two-cross (1:1)
- Nipples DT ProLock Squorx ProHead alu
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 18-25 mm
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection P 1800 SPLINE® we found 5 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.
-
Unfortunately we don't offer discounts; we don't sell directly to private customers. Please contact a dealer. You can find recommended retail prices on our website.
-
Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.
Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.
-
Use our Wheel Finder to find the right wheel for your bike and requirements in only a few steps. If you have any further questions or would like advice, please contact a dealer. They'll be happy to help you.
-
The current DT Swiss wheels are tubeless-ready and come with mounted tubeless rim tape and corresponding valves. For conversion, you will need a tubeless-capable tire (optimal: UST) and tire sealant. You can find both at an official dealer. Our How To video will take you through step-by-step assembly.
If you have previously ridden your bike with a tube or if the tape no longer sticks properly to the rim, we recommend that you replace the rim tape as a precaution.
How to attach the tubeless rim tape:
1. Measure the inside width of the rim.
2. The tubeless rim tape should be approx. 2 mm wider than the rim and can be bought from a specialist store.
3. Apply the tubeless rim tape. Depending on the rim/tire combination, it may be helpful to apply two or three layers of tubeless rim tape to optimally seal the rim bed.
