A 1800 SPLINE®
Reaching new top speeds is now available to all.
- MSRP per set US$ from $ 543
- Weight per set from 1691 g
- Brake interface Disc Brake
- from € 429
- from CHF 452
Product details
Everything about our A 1800 SPLINE 30 is designed to make the discovery of a new world of speed accessible and enjoyable. Based on our first aero-optimized alloy rim, it marks the democratization of our Aero category. In addition to the rim, hidden nipples and aero spokes enhance the aero advantage. So what are you waiting for? Get them on your bike and chase those local KOMs with speed and the wind as your ally. A 1800 SPLINE WTS: The A 1800 SPLINE wheels are now available as an aero-optimized wheel tire system (WTS), mounted with the new AERO 111 tire in 26 mm width in the front and a Continental GP 5000 STR in 28 mm width in the rear.
- Hub type 370 with Ratchet LN 18
- Rim Aluminum, Hooked / Crotchet tubeless TC
- Rim height 30 mm
- Spokes DT aero comp® wide straightp
Model finder
Just a few clicks to find your model. Please use the filter below.

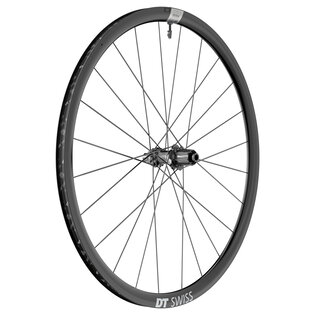

A 1800 SPLINE db 30 12/142 mm Shimano
W0A1800NIDMSA20790- Net weight 964 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Recommended for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 30 mm
- Inner Width 20 mm
- Outer width 24 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 26-35 mm

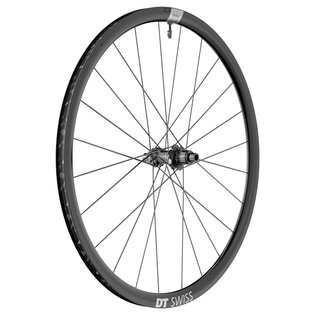

A 1800 SPLINE db 30 12/142 mm Sram XDR
W0A1800NID1SA20791- Net weight 941 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Recommended for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 30 mm
- Inner Width 20 mm
- Outer width 24 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet LN 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 26-35 mm
A 1800 SPLINE 650b db 30 12/142 mm Shimano
W0A1800NJDMSA21718- Net weight 922 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Recommended for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 30 mm
- Inner Width 20 mm
- Outer width 24 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 26-35 mm
A 1800 SPLINE 650b db 30 12/142 mm Sram XDR
W0A1800NJD1SA21719- Net weight 899 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Recommended for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 30 mm
- Inner Width 20 mm
- Outer width 24 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet LN 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 26-35 mm

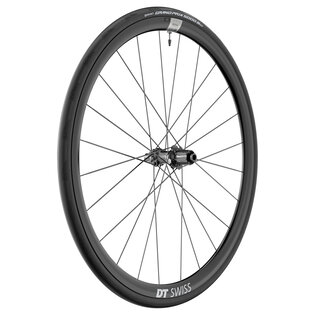

A 1800 SPLINE db 30 12/142 mm Shimano WTS
W0A1800NIDMSA27106- Net weight 1369 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Recommended for e-bikes -
- Inclusive Tires CONTINENTAL GP5000 STR 28-622
- Inclusive Tubes CONTINENTAL BUTYL TUBE SV
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 30 mm
- Inner Width 20 mm
- Outer width 24 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Forged (ASF11)
- Freehub system Ratchet LN 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 26-35 mm
CONTINENTAL GP5000 STR 28-622
CONTINENTAL BUTYL TUBE SV
A 1800 SPLINE db 30 12/142 mm Sram XDR WTS
W0A1800NID1SA27107- Net weight 1346 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Recommended for e-bikes -
- Inclusive Tires CONTINENTAL GP5000 STR 28-622
- Inclusive Tubes CONTINENTAL BUTYL TUBE SV
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 30 mm
- Inner Width 20 mm
- Outer width 24 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet LN 18
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 26-35 mm
CONTINENTAL GP5000 STR 28-622
CONTINENTAL BUTYL TUBE SV

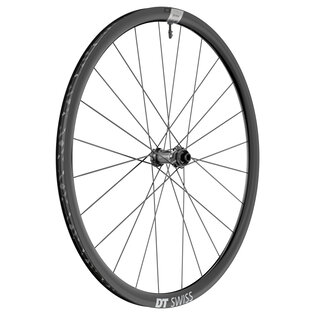

A 1800 SPLINE 30 db 12/100 mm
W0A1800AIDXSA20789- Net weight 835 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Recommended for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 30 mm
- Inner Width 20 mm
- Outer width 24 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 26-35 mm
A 1800 SPLINE 650b 30 db 12/100 mm
W0A1800AJDXSA21717- Net weight 792 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Recommended for e-bikes -
- Inclusive Tires -
- Inclusive Tubes -
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 27.5" / 650B
- Rim Height 30 mm
- Inner Width 20 mm
- Outer width 24 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 26-35 mm

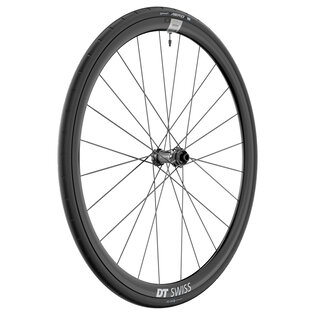

A 1800 SPLINE 30 db 12/100 mm WTS
W0A1800AIDXSA27105- Net weight 1210 g
- recommended System weight max. 110 kg
- ASTM classification 1
- Recommended for e-bikes -
- Inclusive Tires CONTINENTAL AERO 111 26-622
- Inclusive Tubes CONTINENTAL BUTYL TUBE SV
- Material Aluminum
- Rim joint Sleeve joint
- Tire interface Hooked / Crotchet tubeless TC
- Valve hole Presta
- Rim Diameter 29" / 700C
- Rim Height 30 mm
- Inner Width 20 mm
- Outer width 24 mm
-
Cross-section
- Hub type 370
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Spokes left DT aero comp® wide straightp
- Spokes right DT aero comp® wide straightp
- Spoke pattern Two-cross (1:1)
- Nipples DT Pro Lock hidden aluminum
-
Inclusive
Tubeless tape 23 mm
TL valve alu black 26-35 mm
CONTINENTAL AERO 111 26-622
CONTINENTAL BUTYL TUBE SV
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection A 1800 SPLINE® we found 9 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
At temperatures of 200 degrees, carbon will start to wave and lose its stability.
The exhaust gases from a car can be up to 500 degrees Celsius. When transporting your carbon wheel with a rear carrier, make sure that there is sufficient distance to avoid such defects!
Contact the manufacturer of your rear carrier for a protective device.
If you discover this deformation on your wheel, contact our Service Centre.
-
DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.
-
Unfortunately we don't offer discounts; we don't sell directly to private customers. Please contact a dealer. You can find recommended retail prices on our website.
-
Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.
Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.
-
Use our Wheel Finder to find the right wheel for your bike and requirements in only a few steps. If you have any further questions or would like advice, please contact a dealer. They'll be happy to help you.
