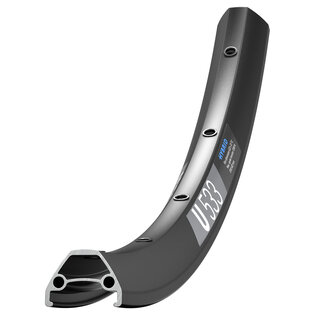

U 533
This 22 mm wide, robust rim is built to last for long trekking trips.
- MSRP US$ from $ 70
- Net weight from 575 g
- from € 44
- from CHF 44
Product details
Built to last, this rim is ideally suited to the demands of today's e-touring and trekking bikes, which are ridden over longer distances and sometimes on rough terrain. Thanks to highly resistant aluminum and a reinforced rim shape, it’s the maximum system weight of up to 140 kg allows you to easily carry extra weight. Now, whether you want to go for a Sunday ride or a multi-day tour is up to you.
- Material ALUMINIUM
Model finder
Just a few clicks to find your model. Please use the filter below.
U 533 26 22 mm DB VI
RDU533ADPS32SA6216- Net weight 575 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Pin joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 26"
- Reference diameter ERD 539 mm
- Inner Width 22 mm
- Outer width 28 mm
- Rim Height 20.5 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Silver & Black Eyelet
- Valve hole Presta
- Inclusive -
U 533 26 22 mm DB VI
RDU533ADPS28SA6136- Net weight 575 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Pin joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 26"
- Reference diameter ERD 539 mm
- Inner Width 22 mm
- Outer width 28 mm
- Rim Height 20.5 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Silver & Black Eyelet
- Valve hole Presta
- Inclusive -
U 533 27.5 22 mm DB VI
RDU533BDPS28SA6137- Net weight 600 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Pin joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 22 mm
- Outer width 28 mm
- Rim Height 20.5 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Silver & Black Eyelet
- Valve hole Presta
- Inclusive -
U 533 27.5 22 mm DB VI
RDU533BDPS32SA6217- Net weight 600 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Pin joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 27.5" / 650B
- Reference diameter ERD 564 mm
- Inner Width 22 mm
- Outer width 28 mm
- Rim Height 20.5 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Silver & Black Eyelet
- Valve hole Presta
- Inclusive -
U 533 29 22 mm DB VI
RDU533CDPS28SA6138- Net weight 635 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Pin joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 602 mm
- Inner Width 22 mm
- Outer width 28 mm
- Rim Height 20.5 mm
-
Cross-section
- Number of holes 28
- Spoke bore rim Silver & Black Eyelet
- Valve hole Presta
- Inclusive -
U 533 29 22 mm DB VI
RDU533CDPS32SA6218- Net weight 635 g
- recommended System weight max. 140 kg
- ASTM classification 2
- Material ALUMINIUM
- Rim joint Pin joint
- Tire interface Hooked / Crotchet tubeless TC
- Brake Interface Disc
- Rim Diameter 29" / 700C
- Reference diameter ERD 602 mm
- Inner Width 22 mm
- Outer width 28 mm
- Rim Height 20.5 mm
-
Cross-section
- Number of holes 32
- Spoke bore rim Silver & Black Eyelet
- Valve hole Presta
- Inclusive -
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection U 533 we found 6 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.
-
Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.
Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.
-
Caution when choosing brake pads for wheels with rim brakes!
- Only "SwissStop Black Prince" brake pads may be used on carbon rims.
- Only "SwissStop BXP Blue" brake pads may be used on OXIC rims.
The use of incorrect brake pads can cause the rim to fail. DT Swiss takes no responsibility in this case. Please also note that brake pads which were previously used on aluminum rims must not be used on carbon rims. The aluminum abrasion in the brake pad can destroy the carbon. For further information about your wheel, please refer to the user manual.
If you notice these damage patterns on your wheel, contact a service center.
-
As wider rims have developed, so have wider tires. However, the different tire and rim widths are not universally compatible. Essentially: The wider the rim, the wider the tires that can be fitted.
-
Here's an explanation of both systems.
