180
The pinnacle among the hubs – Ratchet EXP united with SINC ceramic bearings.
- Net weight from 87 g
Product details
The premium 180 hub convinces with its sophisticated DT Swiss Ratchet EXP® technology giving the hub extra lightness, stiffness, precision and an easy no-tool maintenance. Furthermore, assembled with the low- friction SINC ceramic bearings, the hub performs efficiently and brings your power directly to the road. The hub is available as 180 SPLINE for Straightpull spokes only.
- Material Aluminum
- Freehub system Ratchet EXP 36
Model finder
Just a few clicks to find your model. Please use the filter below.

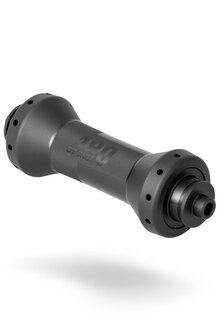

Front wheel 18P NODISC for quick release 5mm
H18PAAQXR20SA3406S- Net weight 87 g
- Field of application Road
- Material Aluminum
- Brake Interface Non disc
- Cassette interface -
- Freehub body -
- Freehub system -
- Axle system 5 mm quick release
- Built-in dimension 100 mm
- Number of holes 20
- Inclusive -

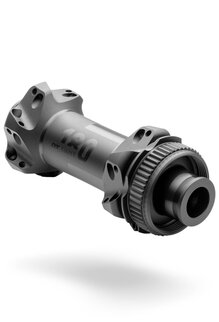

Front wheel 18P DBCL for thru axle 12mm
H18PACDXR24SA3371S- Net weight 92 g
- Field of application Road
- Material Aluminum
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Number of holes 24
- Inclusive -

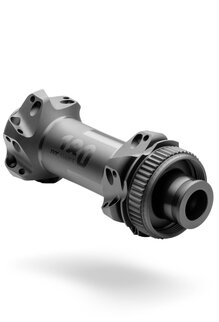

Front wheel 18P DBCL for thru axle 12mm
H18PACDXR28SA4268S- Net weight 98 g
- Field of application Road
- Material Aluminum
- Brake Interface Disc Center Lock
- Cassette interface -
- Freehub body -
- Freehub system -
- Axle system 12 mm Thru Axle
- Built-in dimension 100 mm
- Number of holes 28
- Inclusive -

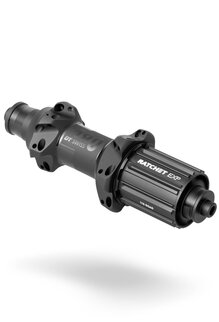

Rear wheel 18P NODISC for quick release 5mm
H18PHRQJR24SA3713S- Net weight 182 g
- Field of application Road
- Material Aluminum
- Brake Interface Non disc
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Light S ASLS11
- Freehub system Ratchet EXP 36
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Number of holes 24
- Inclusive -

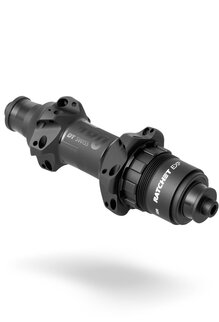

Rear wheel 18P NODISC for quick release 5mm
H18PHRQ1R24SA4702S- Net weight 175 g
- Field of application Road
- Material Aluminum
- Brake Interface Non disc
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet EXP 36
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Number of holes 24
- Inclusive -

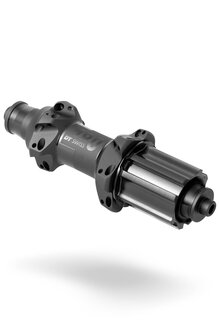

Rear wheel 18P NODISC for quick release 5mm
H18PHRQCR24SA4801S- Net weight 185 g
- Field of application Road
- Material Aluminum
- Brake Interface Non disc
- Cassette interface Campagnolo
- Freehub body Campagnolo (AC)
- Freehub system Ratchet EXP 36
- Axle system 5 mm quick release
- Built-in dimension 130 mm
- Number of holes 24
- Inclusive -

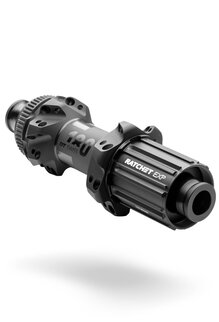

Rear wheel 18P DBCL for thru axle 12mm
H18PNCDJR24SA3514S- Net weight 187 g
- Field of application Road
- Material Aluminum
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Light S ASLS11
- Freehub system Ratchet EXP 36
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Number of holes 24
- Inclusive -
Rear wheel 18P DBCL for thru axle 12mm
H18PNCDJR28SA4708S- Net weight 190 g
- Field of application Road
- Material Aluminum
- Brake Interface Disc Center Lock
- Cassette interface Shimano ROAD
- Freehub body Shim. RD. 11SP Light S ASLS11
- Freehub system Ratchet EXP 36
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Number of holes 28
- Inclusive -

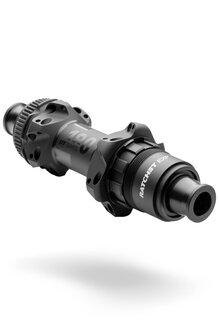

Rear wheel 18P DBCL for thru axle 12mm
H18PNCD1R24SA3670S- Net weight 180 g
- Field of application Road
- Material Aluminum
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet EXP 36
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Number of holes 24
- Inclusive -
Rear wheel 18P DBCL for thru axle 12mm
H18PNCD1R28SA4334S- Net weight 183 g
- Field of application Road
- Material Aluminum
- Brake Interface Disc Center Lock
- Cassette interface Sram XDR
- Freehub body SRAM XDR RD. (AXDR)
- Freehub system Ratchet EXP 36
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Number of holes 28
- Inclusive -

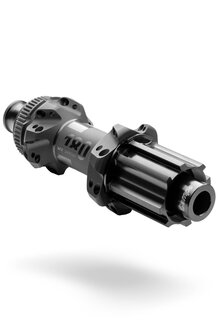

Rear wheel 18P DBCL for thru axle 12mm
H18PNCDCR24SA4730S- Net weight 189 g
- Field of application Road
- Material Aluminum
- Brake Interface Disc Center Lock
- Cassette interface Campagnolo
- Freehub body Campagnolo (AC)
- Freehub system Ratchet EXP 36
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Number of holes 24
- Inclusive -
Rear wheel 18P DBCL for thru axle 12mm
H18PNCD9R24SA0109S- Net weight 189 g
- Field of application Road
- Material Aluminum
- Brake Interface Disc Center Lock
- Cassette interface Shimano Micro Spline
- Freehub body Shim. RD.12SP Light (ASL12R)
- Freehub system Ratchet EXP 36
- Axle system 12 mm Thru Axle
- Built-in dimension 142 mm
- Number of holes 24
- Inclusive -
-
Looking for conversion options, spare parts, manuals or how-to videos? Visit our product support.
-
Find help and answers for frequently asked questions here.
According to your selection 180 we found 12 models. Please use the model finder above to narrow down the models.
Select the model for which you need product support.
Find help and answers for frequently asked questions here.
-
DT Swiss sells its products exclusively via official dealers, some of which also have online shops. Please contact your dealer. Or contact the distributor for your country – please use the contact form and select your country first, followed by "Product availability" as the subject.
-
Compare the products on our website, where you can find our entire range and all technical specifications. Use the Wheel Finder to find the right wheel in just a few clicks.
Alternatively, contact a dealer – they know all about DT Swiss products and technologies and can advise you.
-
Each Ratchet System has a different purpose. Find out more about the various DT Swiss Ratchet and freehub systems.
-

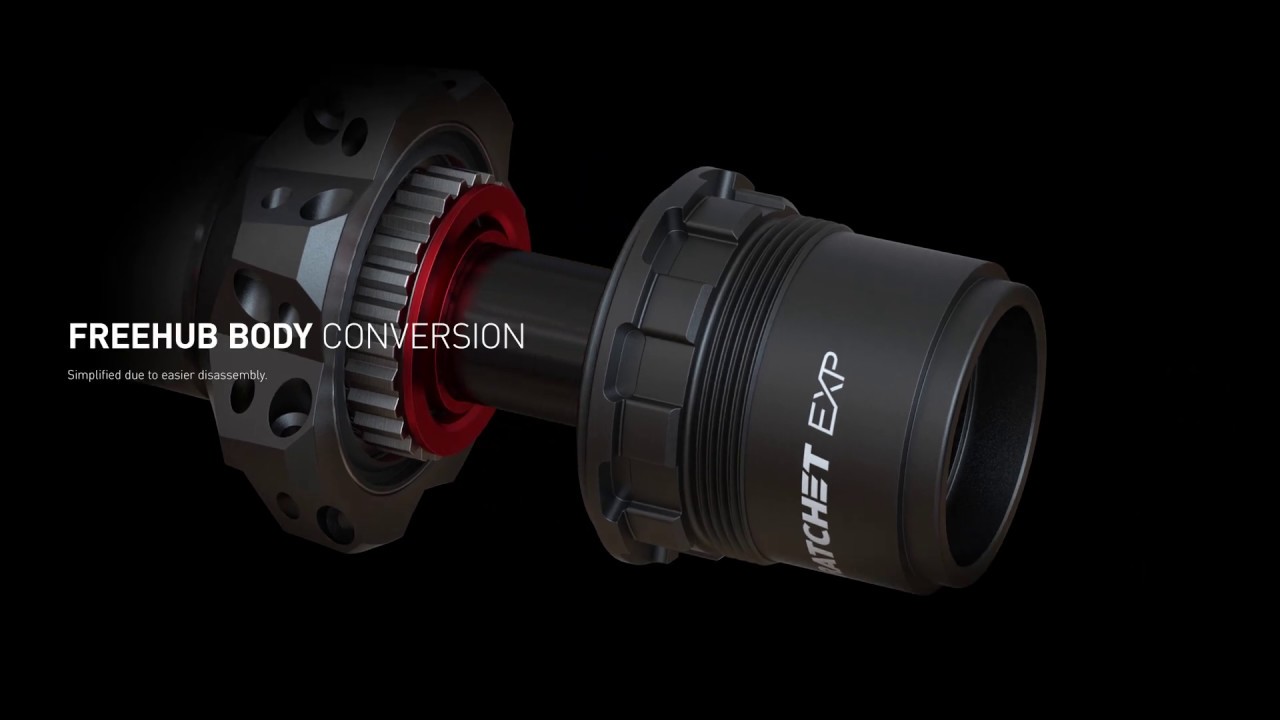

Under Product Support, you will find exact details of all conversion options for your product (wheel, hub). First go to Product Support and select your product using the DT Swiss ID or filter. Under "Conversion" you will find the exact details for all conversion options. You will also find helpful How To videos and manuals.
-
Regular hub service is worth it! Dust and dirt cause wear parts to wear out faster, which can impair function. We recommend cleaning the hub every 12 months and lubricating it with a suitable grease. Here you can find How To videos and user manuals for hub servicing. If you need to replace a ratchet, please contact our Service Center or a dealer.
